16S - BMU

BMS

Description

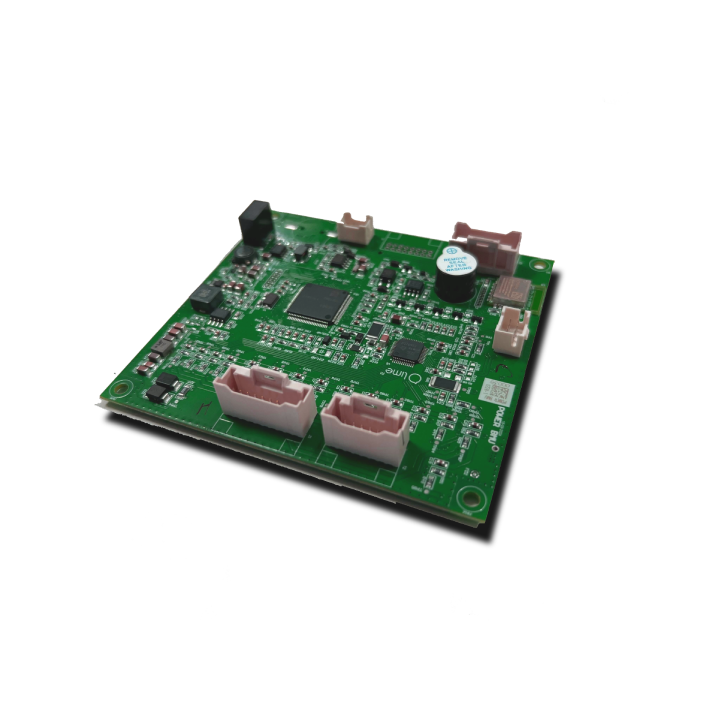

16S BMU is a distributed battery management system that is fully configurable, along with advanced safety features and estimation algorithms.

The 16S BMU can be integrated with a Contactor Control Unit for operating with Contactor based solution as well as with 100A/200A FET Control board for operating with FET based solution.

Supports up-to 16 cells in series and allows a continuous current of 200A. Designed for E-3W applications.

16S - BMU Specification

Technical Specifications

OPERATING LIMITS

BMS Operating Voltage:

42 - 70 V

Standard Operating Limit, can be modified as per application requirements.

Active Mode Current Consumption:

< 11.5 mA

Sleep Mode Current Consumption:

< 550 uA

Operating Temperature:

- 20 to 85 °C

SENSING

Cell Voltage Sensing Channels:

16 #	Can sense 9-16 cells in series

Cell Voltage Sensing Range:

0 - 5 V

Cell Voltage Sensing Accuracy:

\pm 5

No. Of Onboard Temperature Sensors:

2 #	AFE + FET + Board Temperature Sensors

No. Of External Temperature Sensors:

8 #

NTC Type

Temperature Sensing Accuracy:

\leq 1

°C

Channel Accuracy, Range dependent on NTC used

POWER DISTRIBUTION

Power Distribution Unit Type:

FET or Contactor Based

Integrates with Lime FET/Contactor PDU

CELL BALANCING

Maximum Cell Balancing Current:

200 mA @

V_{c e l l} = 4.2 V

STATE ESTIMATION

SoC Accuracy:

\leq 1

For NMC %

\leq 3

For LFP %

with cell modelling

SoH Accuracy:

\leq 3

For NMC %

\leq 3

For LFP %

with cell modelling

I/O CHANNELS

No. of Isolated Input Channels:

1 #

No. of Isolated Output Channels:

1 #

Current Sinking Capability:

50 mA

Current Sourcing Capbility:

50 mA
